Narrow Frame Laminated Glass Roof Skylight with 2.0mm Aluminum Frame Automatic Vertical Opening for Villa Attic Basement
Product Description
Product Highlights
35 Series Roof Skylight
35 series narrow frame aluminum frame roof skylight designed for villa attic, basement light well and commercial building atriums. Adopts 2.0mm thick aluminum profile with 43×170mm outer frame, available in electric sunshade, manual sunshade and fixed types, suitable for flat and sloped roofs.
Safety Sealing Performance
Equipped with laminated safety glass with 6mm glass plus 1.14PVB film plus 6mm glass option. Glass fragments will stick to PVB interlayer when broken, no splashing injury risk, greatly improving roof use safety. High performance waterproof sealing system achieves 700Pa water tightness and 1.5m³/(m·h) air tightness, preventing roof leakage and internal condensation.
Structural Light Performance
2.0mm thick aluminum alloy frame withstands maximum 5.0kPa wind pressure, with excellent weather resistance for long term outdoor exposure. High transmittance glass fully introduces natural light, brightening dim spaces like attic, basement and indoor atrium, and optimizing indoor lighting environment.
Building Application Scenarios
Ideal for villa attic, basement light well, sun room, penthouse top floor and commercial building atrium projects requiring roof lighting and ventilation. Available in 4 regular colors matching different roof styles and architectural designs.
Project Custom Service
Standard export packaging with reinforced protection for glass products. Supports glass configuration options including hollow glass and laminated glass, and opening mode options including electric and manual. Professional team provides technical design and installation guidance for construction projects and real estate developers.
Scene Image
S35 Slim-frame Electric Skylight Specifications
Applicable Scenarios:Basements, light wells, sloped roofs, sunrooms, etc.
Opening Method:Electric top-hung opening
Surface Treatment:Electrostatic powder coating for the whole window
Processing Technology:Seamless welding
Profile Material:Aviation-grade aluminum profile
Profile Specifications:Profile wall thickness 2.0mm; outer frame size 43mm × 170mm
Optional Colors:Standard colors including textured gray, white, metallic gray, metallic coffee, black diamond, textured black, etc.
Production Dimensions:Max area per sash < 1.5 ㎡; sash width range: 630mm–1500mm; sash height ≥ 450mm
Installation Specifications:For 0–5° daylighting roofs or concrete roofs
Glass Configuration:6mm+25A+6mm / 6mm+1.14PVB+6mm
Standard Configuration:Dongguan Jiachuang Technology motor (3-year warranty), Circular LED light strip, Wall control switch, Single-frequency /multi-frequency remote control
Optional Smart Features:For skylight width > 1150mm: equipped with dual-chain motor (3-year warranty), Electric honeycomb blind, Dedicated middle-frame screen mesh, Remote control via mobile APP, Voice controller, Wireless rain sensor, Solar-powered wireless rain sensor, Wireless wind-light-rain sensor
Smart Electric Top-Hung Opening System
- 1Effortless one-touch operation opens and closes the skylight in seconds, eliminating the need for manual reaching or step ladders.
- 2Precision chain motor delivers smooth, stable and ultra-quiet operation with reliable performance even under strong wind loads.
- 3Multiple control options — remote, wall switch, smartphone APP and voice control — provide maximum convenience for every user scenario.
- 4Automatic rain & wind sensors detect weather changes and close the skylight instantly, protecting your interior from water damage around the clock.
- 5Generous top-hung opening angle maximizes natural ventilation and daylight intake, creating a healthier, brighter and more comfortable living space.
Intelligent Control System
One-touch control opens and closes the skylight for simple operation, even in high or hard-to-reach areas.
Product Description

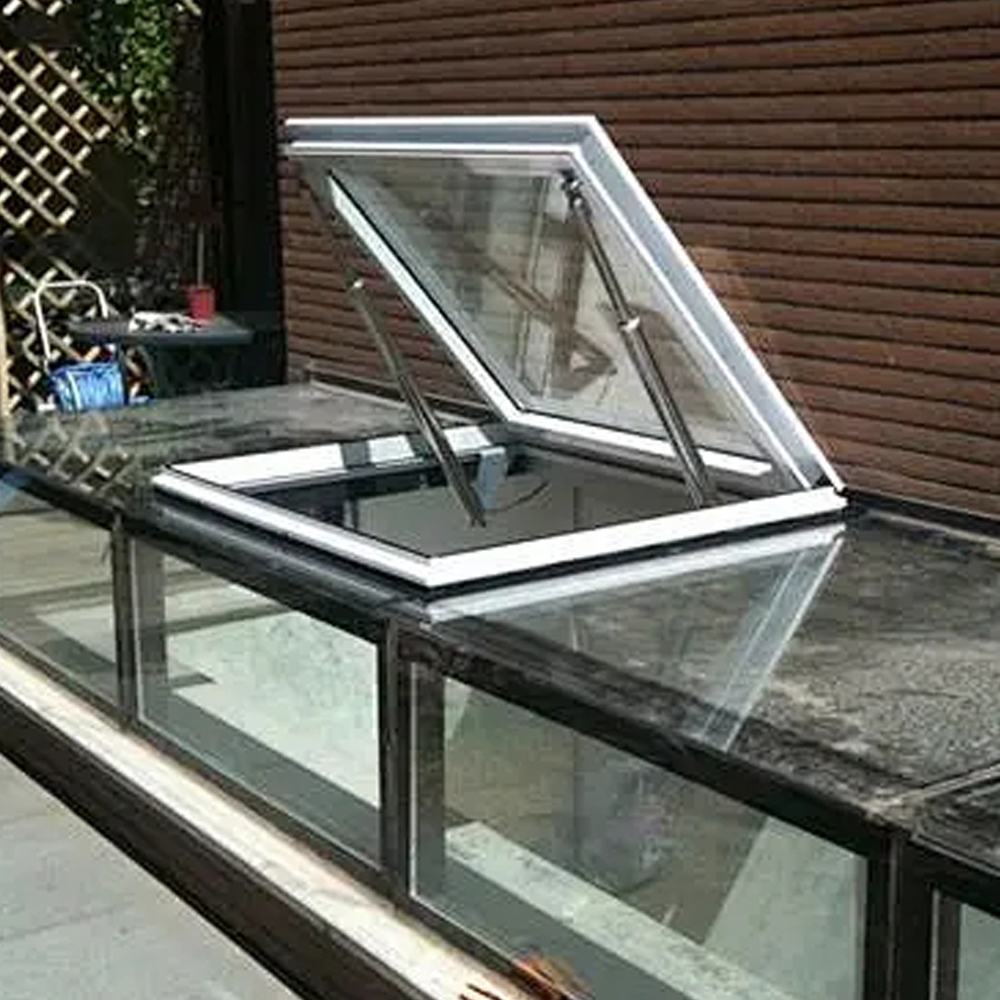

The entire top sash lifts upward by 20 cm as a whole, achieving excellent ventilation and thermal insulation. It is matched with an intelligent control system for effortless opening and closing, and fitted with a circular diamond mesh screen to prevent mosquitoes and insects.
About the Supplier
About Us: Guangdong Color Master Building Material Co., Ltd. was founded in 2012 in Foshan, China. Backed by 28 years of industry experience, we specialize in the design, production and sales of high-end aluminum doors and windows, delivering professional solutions for residential, commercial and custom architectural projects worldwide.
Our product range includes awning windows, casement windows/doors, sliding windows/doors, folding windows/doors, garage doors, glass sunrooms, curtain walls and custom aluminum glazing systems.
We operate a 15,000㎡ modern manufacturing base in Foshan with advanced production lines and intelligent management systems. Our annual output exceeds 1.5 million ㎡, and standard orders can be delivered within 20–30 days.
Certified to Australian AS2047 and American NFRC standards, our products deliver reliable performance in energy efficiency, durability and safety. We have completed numerous large-scale export projects across North America, Europe, Australia and the Middle East.
Production Workflow
Packaging & Shipping Specifications
Trade Show Participation
Extended Company Profile
Frequently Asked Questions (FAQs)
What is the price per square meter / How much does it cost?
Our products are custom-made. The final price depends on specifications, material configuration (e.g., profile thickness, glass type), design complexity, and order quantity. Please share your basic project information (purpose, dimensions, reference images), and we will provide a transparent, detailed itemized quotation so you understand the value behind every cost.
Can I get a sample? Is it free?
Absolutely. We encourage you to verify quality firsthand. We offer a limited number of free small samples (e.g., color swatches, small cuttings), for which you only need to cover the international courier cost. For functional parts or larger samples, a nominal fee may apply, which will be fully credited against your future bulk order.
Can you help with installation?
We provide detailed installation manuals, HD video tutorials, and ongoing remote technical support. For large or complex projects, we can recommend experienced local installers or dispatch our technicians for on-site guidance (this may incur additional costs, negotiable).
I have my own design. Can you customize it?
Absolutely! Customization is our core strength. Please send us your sketches or renderings. Our engineering team will conduct a feasibility study, offer optimization advice, and provide professional detailed drawings for your approval.
What are the shipping costs and delivery time?
Shipping Costs: These depend on the total order volume, weight, destination, and your chosen trade terms (e.g., FOB, CIF). We will propose the most cost-effective logistics solution upon order confirmation. Lead Time: Typically, production for standard orders takes 10-15 days (starting from receipt of deposit and final approved drawings). The exact timeline is subject to our production schedule and project complexity. We maintain transparent communication throughout the process.
How do you ensure quality?
We implement a multi-layer quality control system: 1. Incoming raw material inspection. 2. In-process checks during key production stages. 3. 100% Pre-installation Inspection before shipment: All assemblable components are test-fitted at our factory to ensure precise dimensions and perfect functionality, aiming for "zero-error installation" on your site. 4. We fully support and cooperate with third-party inspections.
