Heavy Traffic
Child Safe Aluminum Folding Doors Smooth Waterproof for Kitchen & Courtyard
Anti-Pinch Gaskets
EPDM Weatherseal
Waterproof Sills
Engineered Fenestration Systems
Featured Aluminum Kitchen & Patio Door Collections
Review our high-performance architectural systems. Designed to withstand intensive grease exposure, ambient humidity differentials, and heavy cycle rates, these assemblies balance sleek narrow stiles with maximum acoustic dampening and thermal efficiency.
Enhanced Security
YUDON Powder Coated Aluminum Entrance Anti-Rust Door with Multi-Point Lock
Class RC3 Security
Anti-Rust Coating
Multi-Point Cam
Architectural French

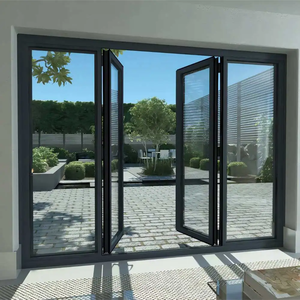

French Style Aluminum Tempered Glass Casement Doors with Fiberglass Screen
Tempered Safety Glazing
Insect Screen
High Air Tightness
Energy Efficient

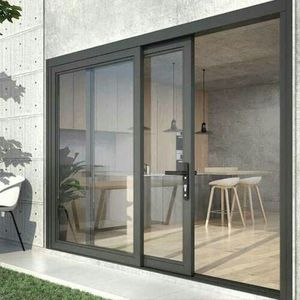

Aluminium Double Tempered Glass Multi-Panel Energy Efficient Sliding Doors
Multi-Track Sliding
Argon-Filled IGUs
Smooth Stainless Track
NFRC Certified
NFRC Thermal Break Sliding Door with Low-E Double Glazed Glass U-value 1.7
Polyamide PA66 Barrier
Low-E Coating
US Code Compliant
Grand Entrance
Luvindow Aluminum French Mother and Son Double Door with Grille Design
Asymmetric Leaves
Internal Grille Bars
Heavy Duty Hinges
Lift & Slide

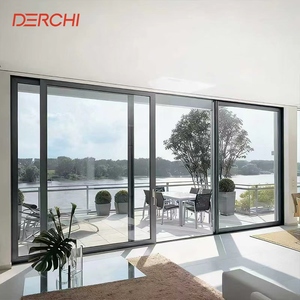

DERCHI Ultra View Heavy Duty Aluminum Lift Slide Thermal Patio Doors
Lift Mechanism 400kg
Flush Track Profile
Acoustic Damping 42dB
Kitchen Ventilation

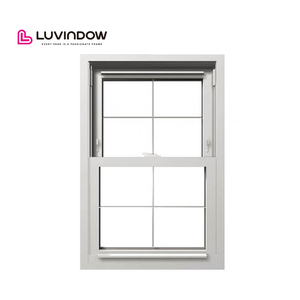

Top Hung Aluminium Transom & Window System with Fly Screen for Kitchens
Integrated Ventilation
Security Latches
Stainless Steel Mesh
Technical Specification Benchmark
Engineering Metrics for Aluminum Kitchen Doors
Modern commercial and residential kitchens represent unique microclimates characterized by rapid temperature swings, oil aerosol vapor deposition, and elevated relative humidity. Sourcing systems that balance narrow sightlines with structural longevity demands rigorous adherence to material chemistry and mechanical standards.
Alloy Chemistry: 6063-T5 vs. 6061-T6
For kitchen fenestration, extruded 6063-T5 architectural alloy offers the optimal surface finish quality, allowing superior adhesion for electrostatic powder coating and anodized films. For oversized pivot and heavy multi-panel sliding panels up to 3.5m height, structural interlocks use high-yield 6061-T6 reinforcement to resist windloads up to 3000 Pa.
Thermal Separation: PA66 GF25
Condensation on indoor aluminum surfaces leads to mold and degradation in active culinary spaces. Utilizing polyamide PA66 reinforced with 25% glass fiber guarantees an equivalent thermal expansion coefficient to aluminum, preventing structural shear fatigue while bringing U-values down to 1.4 - 1.7 W/m²·K.
Surface Protection: Qualicoat Class 2
Standard architectural powder coats quickly dull under exposure to cooking vapors and alkaline cleaning agents. Top-tier Chinese manufacturers employ super-durable fluoropolymer (PVDF) and Qualicoat Class 2 thermosetting powders, guaranteeing 10+ years of color retention and salt-spray resistance over 2,000 continuous hours.
180,000㎡
Smart Manufacturing Base
Foshan Guangdong Facility
600+
Master Technicians
Precision Fabrication & QC
100+
Patents & Global Standards
CE, ISO9001, AS2047, NFRC
≤ 1.7
Certified U-Value
Thermal Performance Rating
B2B Material Comparison Matrix
Comparative Matrix: Aluminum vs. Alternative Kitchen Door Profiles
When evaluating large-scale architectural projects, selecting the right door profile substrate determines life-cycle maintenance costs, structural deflection thresholds, and environmental performance ratings.
| Profile Substrate | Moisture & Oil Resistance | Structural Sightline / Strength | Thermal Insulating U-Value | Maintenance Cycle | Compliance Rating |
|---|---|---|---|---|---|
| Thermally Broken 6063-T5 Aluminum | Impervious to grease, steam & direct water splash | Ultra-slim stiles (down to 18mm); high moment of inertia | 1.4 - 1.8 W/m²·K (with Low-E IGUs) | Routine wipe with neutral detergent | AS2047 / CE / NFRC |
| Non-Thermal Aluminum | Excellent moisture resistance; prone to condensation | High strength, lightweight profile | 3.8 - 5.2 W/m²·K (high thermal bridging) | Regular cleaning; condensation management | Regional / Interior only |
| Engineered Solid Wood / Timber | High risk of warping, swelling, and mold under humidity | Bulky frames required for structural stability | 1.6 - 2.1 W/m²·K | Repainting, resealing every 2-3 years | Standard FSC Certified |
| uPVC (Vinyl) Composite | Impervious to water; susceptible to oil yellowing | Thick profiles; structural deflection in tall spans | 1.5 - 2.0 W/m²·K | Susceptible to thermal expansion gaps | Standard EN 12608 |
| Cast Aluminum Art Profiles | Maximum resistance; rust-proof integral casting | Heavy relief; ideal for villa main entrances & majlis | Variable depending on internal core insulation | Virtually zero maintenance over 25+ years | ISO9001 / High Security |
Industry Foresight: 2026 - 2030
Future Procurement Trends in Kitchen & Patio Fenestration
Global architectural design is shifting toward zero-threshold, highly connected indoor-outdoor culinary zones. Procurement managers and real estate developers should align specifications with these transformative trends.
01
Ultra-Slim Minimalist Sightlines
Developers are eliminating visual borders between chef kitchens and outdoor terraces. Ultra-narrow interlocks (18mm to 21mm) with recessed outer sub-frames maximize natural light penetration while maintaining required wind resistance loads.
02
Zero-Barrier ADA Sills
Kitchen spaces transition smoothly to dining gardens with hidden drainage sills. Recessed floor tracks flush with kitchen porcelain tile prevent tripping hazards, while concealed high-volume drainage weeps evacuate water at over 350 L/min.
03
Smart IoT & Motorized Automation
Next-generation luxury residences integrate automated linear magnetic motors into sliding and bi-fold kitchen systems. Operation via gesture sensors, wall keypads, or smart building management systems prevents oily fingerprints on glass surfaces.
04
Circular Green Aluminum & Low-VOC
Institutional commercial tenders now enforce strict ESG mandates. Procuring door profiles made with certified low-carbon hydroelectric-smelted recycled billets with powder coatings free of heavy metals and low VOC emissions is rapidly becoming non-negotiable.
Why Global Builders Partner With DERCHI
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
Recognized as one of China's top tier fenestration manufacturers, DERCHI operates a premier 180,000㎡ production base in Foshan, Guangdong. Backed by 25+ years of bespoke craftsmanship and international export prowess, we bridge architectural vision and industrial fabrication.
Massive Scale & Integrated Supply Chain
Our 180,000㎡ industrial complex houses automated 5-axis CNC profile machining centers, in-house glass processing furnaces, and robotic powder coating lines. Controlling every stage from raw aluminum extrusion processing to final assembly eliminates third-party markups and secures competitive factory-direct pricing for international buyers.
Global Compliance: CE, AS2047, NFRC & ISO
Navigating global building codes requires verified laboratory test reports. DERCHI products hold over 100 patents and are formally certified to Australian AS 2047 (passing the highest N6 standard for wind and water tightness), American NFRC thermal metrics, CE marks for the EU, and UL fire rating standards, simplifying consultant approvals.
100% Bespoke Engineering & Export Packaging
No two architectural floor plans are alike. Our dedicated team of over 600 skilled technicians and bilingual project engineers provides complimentary CAD/BIM shop drawings within 24 hours. Finished units are packed in reinforced, fumigation-free solid timber crates lined with moisture-barrier films for safe oceanic transit to the GCC, USA, Australia, and Europe.
Strategic Sourcing Insights
Frequently Asked Questions by Project Specifiers & Importers
Clear, direct answers regarding engineering specifications, MOQ, lead times, and on-site performance verification for global aluminum kitchen and entry doors.
How do aluminum kitchen doors handle cooking fumes, grease, and high humidity?
Our kitchen door assemblies are manufactured with non-porous 6063-T5 aluminum finished with certified fluoropolymer (PVDF) or architectural powder coatings tested to withstand standard degreasing detergents and vegetable oil vapors without delamination or color change. Silicone-free EPDM gaskets create a barrier that prevents culinary moisture from reaching internal building cavities.
What glass specification is recommended for connecting the kitchen to patios or backyards?
We typically specify double-glazed insulated glass units (IGUs) composed of 5mm + 12A/16A Argon + 5mm tempered safety glass with Low-E soft coatings. For projects in high-heat zones like the Middle East or southern USA, warm-edge spacers reduce the solar heat gain coefficient (SHGC) while achieving acoustic damping ratings above 35dB.
Can DERCHI manufacture custom dimensions and match existing project architectural colors?
Yes. 100% of our production is custom-engineered to project schedules. We offer exact dimensioning up to 4,000mm panel heights for pivot and multi-panel sliding doors. For surface finishing, we match any standard RAL, AkzoNobel, or PPG color code, in addition to specialized fluorocarbon metallic finishes and Italian wood-grain transfer sublimation.
What are standard production lead times, and how are goods secured for ocean freight?
Standard fabrication lead time runs 25 to 35 business days following CAD shop drawing approval and hardware sign-off. Every door sash and outer frame is wrapped in anti-scratch protective PE tape, corner-buffered with high-density EPE foam, and encased in IPPC-certified fully enclosed wooden crates to prevent flexing or salt-spray ingress during sea voyage.
What certifications and structural test reports are available for consultant submittals?
We supply full submittal packages including ISO 9001 quality management certificates, CE factory production control documents, AS 2047 acoustic/water/wind test reports, and NFRC thermal performance data sheets. Comprehensive structural calculation sheets signed by fenestration engineers are available on request for municipal building authority clearances.
What minimum order quantity (MOQ) and payment terms does DERCHI accept?
Because we serve both boutique luxury villa developers and high-density commercial projects, our MOQ is flexible—starting from single custom villa sets up to full container load (FCL) multi-unit orders. Standard trade terms include FOB, CIF, DDU, and DDP, with payments handled through verified T/T or Irrevocable Letters of Credit (L/C).
Request a Precision Engineering Proposal for Your Project
Send your door schedules, architectural elevations, or structural opening dimensions to our engineering team in Foshan. We review wind load requirements, thermal targets, and provide complimentary CAD shop drawings with transparent factory-direct pricing within 24 hours.
