Engineered Aluminum Entry Doors & Architectural Fenestration Systems
Manufactured in our 180,000㎡ precision facility. Designed for high wind-load resistance, acoustic suppression, low thermal transmittance (U-values down to 0.18 BTU/hr·ft²·°F), and custom high-traffic commercial or luxury residential entries.
Aluminum Pivot Entrance Door with Double Glazed Insert for Grand Entrance Projects
- 6063-T6 Thermal-Break Extrusions
- German Heavy-Duty Pivot Hardware
- Argon-Filled Insulated Safety Glass
OUNA Hurricane Proof High Impact Black Aluminum Alloy Thin Profile Casement Windows & Doors
- ASTM E1886 / E1996 Impact Tested
- Multi-Point Concealed Deadbolt Locks
- SentryGlas® High Structural Interlayer
Aluminum Exterior Sliding Systems for Villas Modern Balcony Living Room Soundproof Solutions
- STC 42dB Acoustic Damping Rating
- Stainless Steel Quad-Roller Runners
- Fluoropolymer PVDF 3-Coat Exterior
AS2047 CE NFRC Double Glazed Waterproof Glass Aluminum Sliding System with Fly Screens
- AS2047 N6 Extreme Wind Pressure
- Integrated Stainless Flyscreen Mesh
- Triple-Seal Weatherstrip Gasket System
Villa Custom Weatherproof Windproof Air Tightness Powder Coated Aluminum Casement System
- Polyamide PA66 GF25 Thermal Barrier
- Qualicoat Class 2 Powder Coating
- Continuous Automotive-Grade EPDM
Hihaus Aluminum Sliding Windows for Houses Modern Porch Black Sliding Systems with Shutters
- Internal Venetian Motorized Blind Core
- Anodized Deep Bronze & Matte Black
- Concealed Sub-Sill Drainage Channel
Modern Design Villa Triple Panel Double Glazed Tempered Glass Aluminum Casement Window
- Low-E Double Warm-Edge Spacer Bars
- Heavy Sash Load Capacity up to 250kg
- Thermal Insulation Uw ≤ 1.1 W/(m²·K)

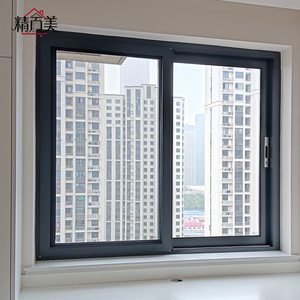

Commercial Customized Long Lasting Sturdy Aluminum Sliding System with Sealed Gaskets
- High-Cycle Tested Over 100,000 Turns
- High Oil & Grease Chemical Resistance
- Factory Direct Custom Mill Dimensions
Guangdong Dejiyoupin (DERCHI) Industrial Strength
Ranked among the premier fenestration and entrance door manufacturers in China. Our automated CNC fabrication facility in Foshan delivers structural integrity, certified thermal performance, and factory-direct procurement for commercial developers, luxury villa contractors, and architectural hardware specifiers.
Automated CNC extrusion processing, cast molding, anodizing & glass assembly.
Dedicated facade engineers, CAD draftsmen, and certified QC specialists.
Fully compliant with AS2047, CE, ISO 9001, UL 10C, NFRC, and AAMA criteria.
Global project execution across North America, the Middle East, Europe & Oceania.
Full-Scale OEM/ODM Engineering & Custom Extrusion Capabilities
DERCHI provides turnkey engineering services starting from structural wind-load finite element analysis (FEA) to tailor-made dies for bespoke architectural extrusions. Whether designing oversized 4.5-meter pivoting entry doors or multi-panel insulated storefront portals, our engineering team converts your architectural concept into production-ready CAD shop drawings within 24 hours.
- Custom Architectural Dies: Low-tolerance tooling for custom profiles in 6063-T6, 6061-T6, and primary billet aluminum.
- Surface Treatment Line: In-house horizontal powder coating (AkzoNobel/Tiger), PVDF 3-coat marine finish, and 25-micron architectural anodizing.
- Thermal Barrier Crimping: Technoperform mechanical rolling with Polyamide PA66 GF25 thermal break strips for high-efficiency Uw values.
Climatic Engineering: Built for Severe Heat, Coastal Salt, & Heavy Storms
Aluminum entrance systems operating in coastal or desert environments like the GCC (UAE, Saudi Arabia, Qatar) or Florida coastal zones require specialized thermal isolation, sealing polymers, and metallurgy. Without engineered thermal decouplers, high external temperatures (+50°C) cause thermal bowing and gasket failure, allowing hot air and sand infiltration.
- Anti-Bowing Split Profiles: Dual-cavity split extrusions prevent bimetallic thermal bowing under high delta-T temperature differentials.
- Marine-Grade Hardware: Heavy-duty 316 stainless steel pivot pins, friction stays, and multipoint locks rated for C5-M marine corrosive zones.
- Sand & Dust Barricade: Multi-layer vulcanized EPDM continuous gaskets block micro-sand particle penetration during windstorm events.
Engineering Architecture: The Anatomy of a High-Performance Entry Door
Specifiers, developers, and facade consultants must evaluate door systems beyond surface aesthetics. Here is how DERCHI addresses the critical structural, mechanical, and thermal parameters required for institutional-grade reliability.
Thermal Decoupling & Insulation Core
We use 24mm to 34mm multi-chamber Polyamide PA66 GF25 thermal breaks rolled mechanically into outer and inner extrusions. Interstitial core volumes are pressurized with high-density polyisocyanurate (PIR) foam (λ = 0.022 W/m·K) or hydrophobic mineral wool, eliminating thermal bridging and condensation in cold climates while maintaining conditioned interiors in hot zones.
Multiaxial Hydraulic Pivot Engineering
For oversized architectural leaves weighing up to 800kg and heights exceeding 4000mm, standard hinges suffer from shear fatigue. DERCHI deploys floor-recessed and top-header concealed hydraulic pivots. Engineered with needle roller bearings and adjustable back-check valves, these allow effortless finger-touch opening forces (< 25N) with integrated 90° hold-open options.
Grade 3 Burglar Resistance & Automation
Security starts at the jamb. Our systems integrate heavy steel Euro-groove multi-point locking gear with 25mm throw deadbolts and anti-saw hardened core pins. Fully compatible with automated commercial access control: motorized magnetic deadlocks, optical facial biometric scanners, RFID card readers, and building management system (BMS) inputs.
Comprehensive Fenestration Material Comparison Matrix
Architectural specifier reference guide for exterior door material selection based on structural, environmental, and longevity requirements.
| System Type | Structural Alloy / Core | Thermal Performance (U-Value) | Acoustic Damping (STC) | Wind Load Resistance | Corrosion Resistance | Ideal Architectural Application |
|---|---|---|---|---|---|---|
| Thermal Aluminum Pivot Door | 6063-T6 / Polyamide PA66 GF25 + PIR | 0.9 – 1.4 W/m²·K | Rw 38 – 44 dB | Class C5 (Up to 4500 Pa) | Qualicoat Class 2 / AAMA 2605 | Modern Luxury Villas, Palaces, Corporate HQs |
| Cast Aluminum Security Entry | Solid A356 Cast Alloy / Steel Core | 1.5 – 1.9 W/m²·K | Rw 42 – 46 dB | High Impact > 5000 Pa | Multi-layer Baked Fluorocarbon | Classic Estates, High-Security Residences, Majlis |
| Marine Stainless Steel Entry | AISI 316 / High-Density Rockwool | 1.6 – 2.0 W/m²·K | Rw 40 – 45 dB | Severe Impact ASTM E1996 | Supreme C5-M Marine Grade | Coastal Residences, Water-Front Hotels, Storm Areas |
| Structural Insulated Glass Entry | Narrow Aluminum Sash / Argon Triple Glass | 0.8 – 1.2 W/m²·K | Rw 36 – 42 dB | Class C4 (Up to 3500 Pa) | Anodized 25µm Architectural | Commercial Lobbies, Minimalist Facades, Showrooms |
Future Procurement Trends & Technological Evolutions (2025–2030)
The architectural entry door landscape is evolving rapidly from conventional manual barriers into energy-positive, electronically connected structural facade portals. Specifiers must integrate these emerging standards to future-proof their building projects.
1. Low-Carbon Circular Aluminum Sourcing
Global mandates such as the European Carbon Border Adjustment Mechanism (CBAM) and LEED v4.1 criteria are demanding full lifecycle traceability. By 2027, over 65% of Tier-1 contractors will require hydro-powered or scrap-recycled low-carbon aluminum billets with certified carbon footprints below 4.0 kg CO₂e/kg Al. DERCHI is actively standardizing primary clean-smelt billet supplies across our whole export catalog.
2. Invisible Smart Home Integration & PoE
Battery-dependent consumer smart locks are being phased out in institutional and luxury architectural projects in favor of Power-over-Ethernet (PoE) and continuous concealed cable conduits integrated directly into the door sash during factory extrusion. Motorized multipoint locksets communicate directly via KNX, Crestron, or Matter protocols for synchronized motorized unlatching, surveillance verification, and climate regulation.
3. Oversized Continuous Monolithic Dimensions
Standard 2.1-meter residential entrance frames are being replaced by monumental, single-leaf pivot panels scaling 3.5m to 5.0m in height. Fabricating these monolithic portals without warping requires carbon-fiber reinforced interior stabilization rods, adjustable internal tensioning tendons, and precision CNC milling to maintain 1.5mm perimeter tolerances across wide seasonal thermal swings.
How to Audit an OEM/ODM Aluminum Entry Door Manufacturer
Factory-direct sourcing from China provides substantial economic efficiency, but vetting process controls is critical for successful long-term project delivery. Here is our recommended engineering checklist before issuing purchase orders.
5 Non-Negotiable Factory Audit Checkpoints
- Extrusion Alloy Spectrometry: Insist on 100% prime primary ingot (A00 grade) with documented test mill certificates showing Mg, Si, and Fe ratios adhering strictly to EN 573-3.
- Corner Joint Assembly: Inquire whether corners are crimped with cast corner cleats, pneumatic cold-welded, and injected with two-component polyurethane corner adhesives.
- Pre-Shipment Dry Assembly: The supplier must assemble, hang, and calibrate the lockset and pivot gear in the workshop prior to final packaging.
- Export Crating Integrity: Fully closed marine plywood crates with inner EPE foam wraps and steel corner guards to prevent maritime transit vibration abrasions.
- Third-Party Lab Reports: Verified test certificates from recognized testing houses (e.g., Intertek, TÜV, NAMI) verifying air infiltration, water tightness, and structural load.
Engineering & B2B Procurement Frequently Asked Questions
Direct answers to technical, commercial, and logistic questions raised by procurement managers, facade consultants, and general contractors.
Thermal bowing occurs when the exterior surface of a door reaches +60°C under direct solar radiation while the interior surface is conditioned to +22°C, causing uneven longitudinal expansion. We resolve this by integrating engineered split-insulating profiles joined by shear-decoupled Polyamide PA66 GF25 insulating struts. This allows the exterior aluminum skin to expand independently without inducing leaf warpage or breaking perimeter gasket compression seals.
Using our proprietary engineered internal structural box frame and heavy-duty German/Italian concealed pivot hardware, DERCHI manufactures single-leaf pivot doors up to 3000mm in width and 6000mm in height, supporting total leaf weights up to 1000kg. Internal adjustable tensioning rods enable micro-calibration on site to ensure long-term plumb alignment and smooth fingertip operation.
For severe marine environments classified under ISO 12944 as C4 or C5-M (e.g., Dubai Palm Jumeirah, Miami Beach, Red Sea resorts), we specify 3-coat Polyvinylidene Fluoride (PVDF) fluoropolymer coatings containing 70% Kynar 500 resin (AAMA 2605 compliant), or Class 1 / Class 2 architectural anodizing with minimum 25-micron thickness. These coatings are tested to 4000+ hours of continuous neutral salt spray (NSS) without blister degradation.
For standard catalog extrusions and standard anodized or RAL powder finishes, manufacturing lead time is typically 25 to 35 calendar days following shop drawing sign-off. For bespoke architectural extrusions requiring custom tooling and die fabrication, add 12 to 15 days for die creation, initial extrusion trial sampling, and dimensional CMM verification.
Yes. Every DERCHI door can be pre-machined at the factory with internal conduit channels, concealed cable loop transfers, and motorized multi-point lock bodies (such as GU-SECURA or Dormakaba systems). The hardware communicates via dry contact relays, Wiegand, OSDP, or IP with building management systems, biometric scanners, Keyless RFID, or smartphone app controllers.
Every door panel undergoes dry assembly and functional testing before being disassembled into marked components or packaged as a pre-hung unit. Leaves are wrapped in protective polyethylene scratch film, secured with closed-cell EPE foam, and encased within fumigated solid plywood crates reinforced with galvanized steel exterior corner strapping. Shock and tilt indicator sensors are available on high-value orders.
Yes. We supply comprehensive submittal packages including structural calculations, official test certificates for Australian Standard AS2047, European CE (EN 14351-1), ISO 9001 quality systems, UL 10C positive pressure fire door approvals, and AAMA/WDMA performance ratings. Our engineering department can also assist in authoring fenestration specification sections for architectural tenders.
To deliver an itemized structural quote and shop drawing proposal within 24 hours, our team requires: (1) Rough opening dimensions or architectural door schedules; (2) Preferred thermal break configuration; (3) Glass specifications (Low-E coating, laminated, thickness); (4) Surface finish requirement (RAL powder coat, anodized, PVDF); and (5) Project geographical location for wind-load and shipping calculation.
Request Engineering Proposals & Factory-Direct B2B Pricing
Connect directly with our senior facade engineering desk. Receive custom CAD shop drawings, acoustic and thermal modeling data, and volume OEM/ODM price schedules within 24 business hours.
