WANJIA Hurricane-Proof Exterior Accordion Bifold Door
Heavy-gauge aluminum structural design engineered for severe tropical storms, high coastal wind loads, and seamless wide-span transitions.
Product Details180,000㎡
Integrated Factory Base
600+
Senior Technical Specialists
AS2047 / CE
Audited Structural Ratings
100+
Global Patents & Testing Marks
Engineered Aluminum Swing Windows & Architectural Systems
Precision-fabricated utilizing virgin 6063-T6 aluminum alloys, PA66 thermal breaks, and multipoint mechanical compression seals tailored for demanding climate installations.
Bronze Alloy SGCC Framed Laminated Glass Pivot Door
Precision-balanced pivot mechanism with soft-close hydraulic braking, 5mm+5mm laminated safety glass, and marine anodized finishing.
Product Details
Double Glaze Commercial Automatic Storefront Sliding System
Industrial duty automated motor rail, double-glazed insulated envelope, and weatherproof perimeter brushings built for high foot-traffic retail.
Product Details
AS2047 Soundproof Low-E Casement French Doors
NFRC-certified energy containment with dual compression swing sashes, acoustic interlayer panes, and multipoint locking hardware.
Product Details
Impact-Rated Double Glazed Aluminum Swing Window
Engineered casement swing system with outward-opening friction stays, argon-filled IGU, and certified structural air-water tightness.
Product Details

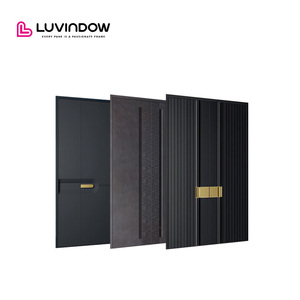

Architectural Aluminum Single Swing Entry Door
Thermally severed luxury profile designed for residential estates, offering seamless flush aesthetics and high mechanical intrusion protection.
Product Details

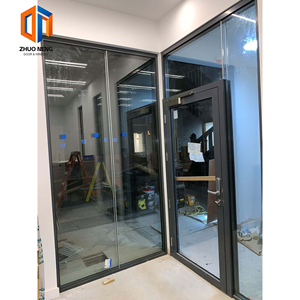

Fire-Rated Commercial Swing Glass Security Door
Tested refractory infill compounds combined with insulated steel-reinforced aluminum perimeter frames for hospitality fire code compliance.
Product Details

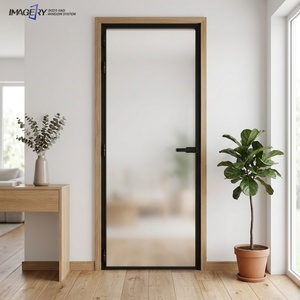

Minimalist Ultra-Narrow Sightline Swing Window/Door
Sleek 18mm visible face profile allowing maximum daylight ingress while retaining high torsional stiffness for modern villas and interiors.
Product DetailsEngineering Excellence: The Mechanics of Modern Aluminum Swing Windows
Aluminum swing windows (commonly referred to as casement or side-hung windows) represent the architectural benchmark for façade fenestration where envelope integrity cannot be compromised. Unlike sliding window configurations that rely on pile weatherstripping and continuous track clearance, an engineered aluminum swing window operates via a mechanical compression perimeter.
When the multipoint espagnolette handle engages, the perimeter sash pulls directly into high-resilience vulcanized EPDM seals. This mechanical lock provides superior thermodynamic isolation against extreme heat, tropical monsoon rains, and wind-driven sand.
As a premier China aluminum swing window manufacturer and factory, DERCHI utilizes primary-melt 6063-T6 aluminum extrusions featuring a minimum wall thickness of 1.4mm to 2.0mm. Profiles incorporate polyamide PA66 fiberglass-reinforced thermal break strips (24mm to 34mm depth). This physical barrier interrupts conductive thermal bridges, allowing structural envelopes to hit stringent U-values below 1.6 W/m²K when combined with argon-gas insulated Low-E glass assemblies.
Multi-Cavity Thermal Breaks
Integration of multi-cavity PA66 GF25 insulation bars reduces interior/exterior temperature conductance, lowering continuous cooling HVAC energy loads across arid and high-heat climates.
Triple-Sealed EPDM Gaskets
Continuous co-extruded EPDM automotive-grade rubber gaskets ensure airtight sealing, meeting AS2047 wind pressure resistance and eliminating airborne desert dust or moisture ingress.
Concealed Heavy-Duty Hardware
High-load stainless steel 304/316 four-bar friction hinges and multi-point perimeter gearboxes support sashes weighing up to 130kg without sagging over decades of operation.
| Performance Metric | Standard Commercial Window | DERCHI Architectural Swing Window | Compliance Standards |
|---|---|---|---|
| Thermal Transmittance (U-Value) | 2.8 – 3.5 W/m²K | 1.2 – 1.8 W/m²K (Argon Gas Low-E) | NFRC / CE EN 14351-1 |
| Structural Wind Load Resistance | 1500 Pa to 2500 Pa | 4500 Pa to 6000 Pa (N6 Cyclonic) | AS 2047 Serviceability & Strength |
| Water Penetration Resistance | 300 Pa Static Test | 600 Pa – 900 Pa Pressure | ASTM E331 / AAMA 501.1 |
| Acoustic Isolation (Rw / STC) | Rw 28 – 32 dB | Rw 38 – 45 dB (Acoustic PVB Laminated) | ISO 717-1 / ASTM E413 |
| Surface Treatment & Salt Spray | Anodized 10μm / 240 hrs | Qualicoat Class 2 / PVDF 3-Coat (1000+ hrs) | AAMA 2605 / ISO 9227 Marine Grade |
Future Sourcing & Procurement Trends: High-Performance Fenestration (2025–2030)
Global procurement teams, real estate developers, and architectural specifiers are shifting purchasing frameworks away from baseline unit cost toward lifecycle asset resilience, carbon accounting, and envelope efficiency. The following shifts dictate future wholesale swing window contracts:
1. Carbon Transparency and Low-Carbon Smelting: International building standards (such as LEED v4.4, BREEAM, and Estidama) are prioritizing windows extruded from aluminum billet produced with renewable hydroelectric smelting. DERCHI monitors raw material provenance, providing traceable documentation for environmental product declarations (EPD).
2. Structural Demands for Oversized Flush Openings: Contemporary architectural vernacular demands larger, floor-to-ceiling glass envelopes with narrow sightlines. Conventional hinges cannot support triple-pane IGUs over 2.4 meters tall. Specifiers now select concealed four-pivot structural hardware concealed directly inside the euro-groove, maintaining a clean visual while carrying significant physical glass weight.
3. Smart Home Mechatronic Integration: Future window specifications demand automated integration. DERCHI provides factory-fitted concealed 24V DC chain actuators and electronic multipoint locking systems compatible with KNX, Zigbee, and dry-contact building automation interfaces for scheduled night cooling and storm sensor auto-closure.
Enterprise Factory Strength
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI)
Ranked among China’s Top 10 luxury door and window manufacturers, DERCHI operates a world-class 180,000㎡ intelligent production base in Shishan Town, Foshan. With 25+ years of dedicated structural research, we produce high-performance aluminum swing windows, heavy-duty pivot doors, accordion systems, and architectural curtain façades.
180,000㎡ Integrated Workshops
600+ Skilled Technicians
CE, AS2047, ISO9001 Certified
30+ Industrial Patents
Contact Us
Comprehensive Fenestration Sourcing FAQ
Direct technical clarification addressing critical international procurement questions regarding structural standards, lead times, coatings, and custom glass configurations.
How do DERCHI aluminum swing windows achieve AS2047 and NFRC compliance?
Our window assemblies are tested in accredited NATA and third-party laboratories. Profiles undergo cyclic structural deflection (deflection at design wind pressure up to 6000 Pa for cyclonic zones), followed by air infiltration tests at 75 Pa and continuous static water penetration testing up to 900 Pa. Complete shop drawings and test certificates are supplied for engineering approval submittals.
What surface finishes are recommended for high-UV and marine coastal environments?
For harsh tropical exposures, Gulf region sandstorms, or coastal sites within 500 meters of the sea, we recommend PVDF (polyvinylidene fluoride) 3-coat finishes or Qualicoat Class 2 / Class 3 fluorocarbon architectural powders. These surfaces withstand 1000+ hours of continuous neutral salt spray without pitting, blistering, or chalking under intense ultraviolet exposure.
Can you accommodate custom CAD shop drawings, glass specifications, and hardware schedules?
Yes. Every commercial project is assigned a dedicated bilingual project engineer. We develop complete elevation schedules, section details, anchor point calculations, and structural glass analysis (including Saint-Gobain Low-E, acoustic interlayers, or impact-resistant SentryGlas) at zero additional charge prior to CNC fabrication.
What are the factory production lead times and protective sea-freight packaging methods?
Typical production time ranges between 25 to 35 business days following final approved shop drawings. Every window unit features corner protective guards, full PE surface film, edge banding, and is packed into fumigated steel-reinforced polywood crates engineered specifically for ocean container transport without vibration or torque damage.
What is your minimum order quantity (MOQ) and warranty coverage?
Because we operate extensive automated CNC tooling lines, we support both custom luxury private residential villas (MOQ starting at 20 m²) and multi-container commercial developer projects. We back our aluminum extrusions with a 15-year warranty, surface coatings up to 10–20 years depending on grade, and 5 years across all certified mechanical hardware components.
